Vuzix LX1™ Smart Glasses
Rugged, all-shift performance

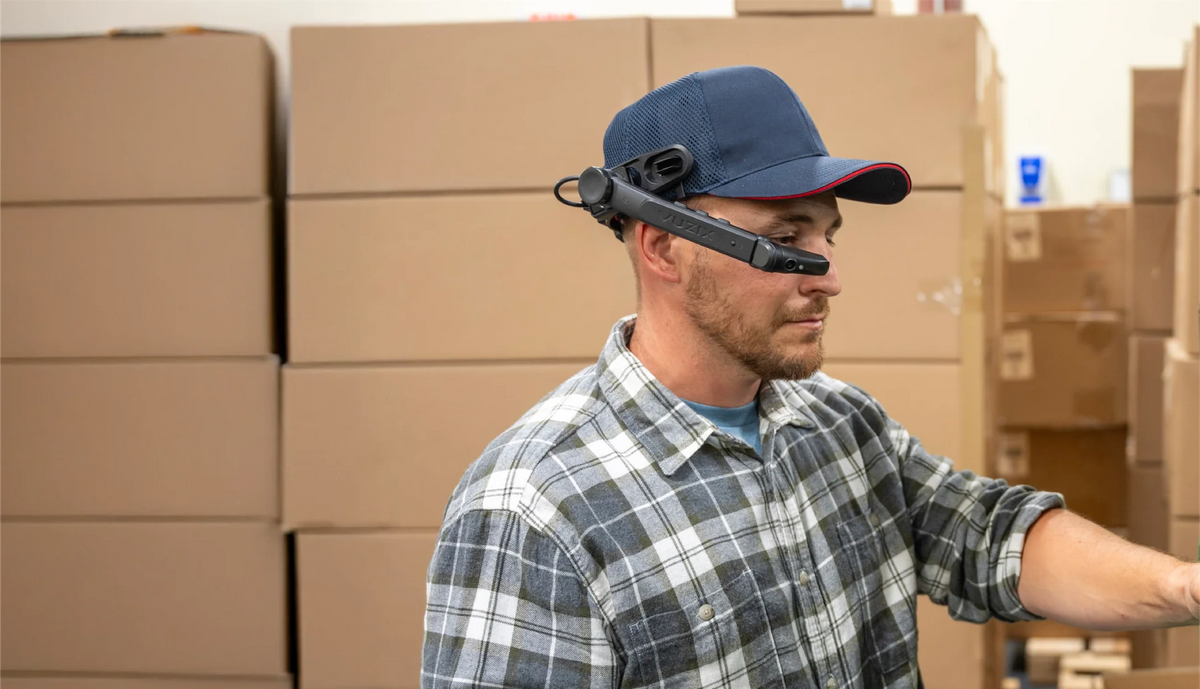

Vuzix LX1 Smart Glasses
Vuzix LX1 Smart Glasses
PART #: SKU:516PVT001
- LX1 Smart Glasses (-20℃/-4℉ to 45℃/113℉ rated)
- 7000 mAh long-shift clip in battery
- Headband with easy release mounting system
- Available multi-battery charging station
- Available baseball cap mount
- User manual
- Mounting guide
- One-year manufacturer’s warranty
Couldn't load pickup availability
Country Availability
Country Availability
See country availability here.

Durability
Certified for the toughest jobs
Vision + Voice
The World's Most Powerful Smart Glasses
LX1 makes picking smarter, safer, and more efficient through a powerful blend of auditory and visual interaction
Connected workforce
Engineered for Long Shifts
Across industries, AR systems must perform under widely varying conditions, from structured enterprise workflows to unpredictable field operations. Each application area reflects a tailored configuration of the same underlying optical and engineering foundation.
CUSTOMIZE YOUR EXPERIENCE
Vuzix LX1 Accessories
Technical Specifications
Download Product SheetOPTICS
- Display: High resolution OLED
- Brightness: > 2000 nits
- Contrast: > 10,000:1
- Supports left or right eye use
SYSTEM
- 8-core 2.4/2.0GHZ Qualcomm® QCS4490
- 6GB LPDDR5 RAM
- 128 GB internal flash memory
- Android 15 OS
- Bluetooth/Wi-Fi 6E
- MDM available from multiple partners
CONTROLS
- 4 control buttons
- Voice control
SECURITY
- Secure Boot; Verified Boot
POWER
- Removable 7000mAh battery
AUDIO
- Integrated speaker (up to 100db output)
- Triple noise-cancelling microphones
- Additional bone-conduction microphone
CAMERA
- Up to 12-megapixel stills
- Auto-focus
- Streaming video at 1080p, 60fps
- LED flash/scene illumination
- High accuracy barcode scanning
INTEGRATED HEAD TRACKING
- 3-degree of freedom head tracking
- 3 axis gyro
- 3 axis accelerometer
- 3 axis mag/integrated compass
MOUNTING
- Variety of mounting options including cap, headband, and more
ENVIRONMENT
- Operating temperature -20ºC to 45ºC (-4ºF - 113ºF)
- Operating humidity 0% - 95% RH
- Storage temperature -30ºC to 70ºC per MIL-STD-810H
- Storage humidity 0% - 95% RH
Developers
Learn how you can access Vuzix resources to build your own applications for our products. Access our Developer's Center for information on our family of devices and developers kits.
Interested in Learning More?
Reach out to discuss your unique use case with our dedicated team.
Evaluation samples are intended for qualified customer and ecosystem partner review. Availability, configuration and technical information may be subject to Vuzix review, NDA requirements and applicable export-control or other restrictions.
