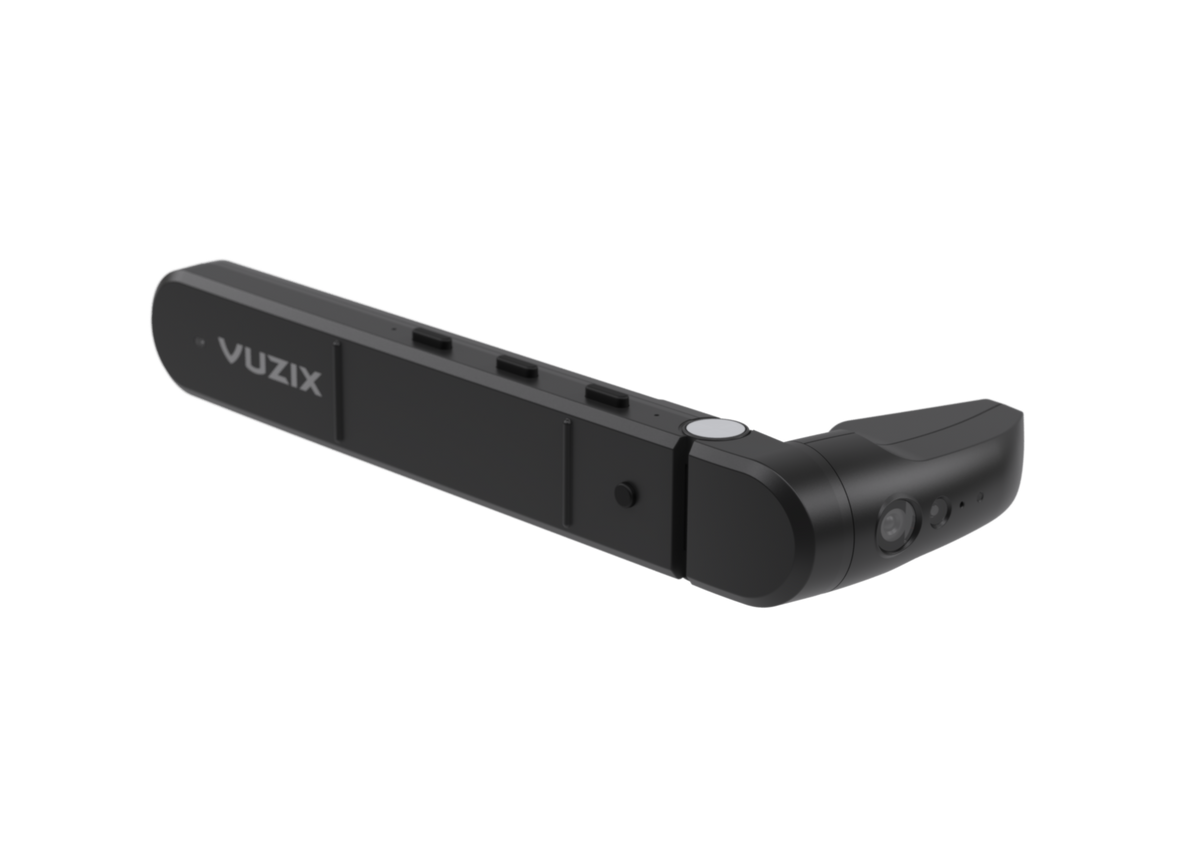

VUZIX M400
- - Display resolution: nHD color display
  - Display type: OLED
  - Aspect ratio: 16:9
  - Field of view (diagonal): 16.8°, equivalent to a 5 in. mobile device screen seen at 17 inches
  - Brightness: > 2000 nits
  - Contrast: > 10,000:1
  - 24-bit color with true black
  - Supports left or right eye use
- - 8 Core 2.52Ghz Qualcomm XR1 - 6GB LPDDR4 RAM
  - 64GB internal flash memory
  - Android 11.0 OS
  - OS and apps OTA upgradeable
  - MDM available from multiple partners
- - IP67 Rated (All Weather Kit)
  - Drop safe to 2 meters
  - ISO 14644-1 Class 2 Cleanroom rating
  - IEC60601-1-2:2014 Medical Device
  - Download Medical Certication
- - Vuzix M-Series Rail Eyeglass frames without lens (standard)
  - Weighs less than 3 oz.
  - Eyeglass frames with lens
  - Safety glasses
  - Hard hat mount
  - Headband mount
  - Peltor headphone mount
- - 135mAh internal battery supports hot swapping of external batteries
  - 750 mAh IP67 certified USB-C battery with 3-level LED indicator (All Weather Kit) or an extended life 4800 mAh USB-C power bank (Extended Wear Kit)
  - Can be powered by 3rd-party USB battery packs in place of head-worn battery
  - 2–12 hours of operation based on external battery choice
- - Voice control is customizable and supports multiple languages
  - 2 axis touchpad with multi-finger support
- - Integrated speaker (up to 97db output)
  - Triple noise-canceling microphones
  - BT audio: HSP/A2DP
- - Up to 12.8-megapixel stills
  - Up to 4k30 video
  - Improved auto-focus (PDAF)
  - Improved optical image stabilization
  - LED flash/scene illumination
  - Barcode scanning
- - USB 3.1 Gen 2 on USB Type-C
  - Wi-Fi 2.4/5Ghz 802.11 a/b/g/n/ac
  - Bluetooth 5.0 BR/EDR/LE
- - GPS / GLONASS
- - Operating temperature -20ºC to 45ºC/-4ºF to 113ºF
  - Operating humidity 0-95% RH
  - Storage temperature 10-45ºC
  - Storage humidity 0-95% RH
- - English
  - Spanish
  - French

  German, Mandarin- Simplified Script, Mandarin- Traditional Script, Cantonese- Traditional Script, Japanese, Arabic, Bulgarian, Czech, Danish, Dutch, Farsi, Finnish, Greek, Hebrew, Hindi, Hungarian, Italian, Indonesian, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish
- -
VUZIX M4000
- - See-through waveguide optics
  - Display resolution: WVGA color display 854x480
  - Display type: DLP
  - Aspect ratio: 16:9
  - Field of view (diagonal): 28°, equivalent to a 9” mobile device screen seen at 18”
  - Brightness: 5000 nits
  - Contrast: > see through 1000:1
  - 24-bit color
  - Supports left or right eye use
- - 8 Core 2.52Ghz Qualcomm XR1
  - 6GB LPDDR4 System RAM
  - 64GB internal flash memory
  - Android 11.0 OS
  - OS and apps OTA upgradeable
  - MDM available from multiple partners
- - IP67 Rated (All Weather Kit)
  - Drop safe to 1 meter
  - IEC60601-1-2:2014 Medical Device
  - Download Medical Certication
- - Vuzix M-Series Rail Eyeglass frames without lens (standard)
  - Viewer weighs less than 3.5 oz
  - Eyeglass frames with lens
  - Safety glasses
  - Hard hat mount
  - Headband (Standard)
  - Peltor headphone mount
- - 135 mAh internal battery supports hot swapping of external batteries
  - 750 mAh IP67 certified USB-C battery with 3-level LED indicator (All Weather Kit) or an extended life 4800 mAh USB-C power bank (Extended Wear Kit)
  - Can be powered by 3rd-party USB battery packs in place of head-worn battery
  - 2–12 hours of operation based on external battery choice
- - 3 control buttons
  - Voice control is customizable and supports multiple languages
  - 2 axis touchpad with multi-finger support
- - Integrated speaker (up to 97db output)
  - Triple noise-cancelling microphones
  - BT audio: HSP/A2DP
- - Up to 12.8-megapixel stills
  - Up to 4k30fps video
  - Improved auto-focus (PDAF)
  - Improved optical image stabilization
  - LED flash/scene illumination
  - Barcode scanning
- - USB 3.1 Gen 2 on USB Type-C
  - Wi-Fi 2.4/5Ghz 802.11 a/b/g/n/ac
  - Bluetooth 5.0 BR/EDR/LE
- - GPS / GLONASS
- - Operating temperature -20ºC to 45ºC/-4ºF to 113ºF
  - Operating humidity 0-95% RH
  - Storage temperature 10-45ºC
  - Storage humidity 0-95% RH
- - English
  - Spanish
  - French

  German, Mandarin- Simplified Script, Mandarin- Traditional Script, Cantonese- Traditional Script, Japanese, Arabic, Bulgarian, Czech, Danish, Dutch, Farsi, Finnish, Greek, Hebrew, Hindi, Hungarian, Italian, Indonesian, Korean, Norwegian, Polish, Portuguese, Russian, Swedish, Thai, Turkish
- - 3-degree of freedom head tracking
  - 3 axis gyro
  - 3 axis accelerometer
  - 3 axis mag/integrated compass
VUZIX Blade 2
- - Display resolution: 480x480 color display
  - Display type: Waveguide Projection Technology
  - Aspect ratio: 1:1
  - Field of View (diagonal): 16.8 degrees, equivalent to a 5 in. mobile device screen seen at 17 inches
  - Brightness: > 2000 nits
  - 24-bit color
  - Supports right eye
  - Prescription inserts available
  - All lenses UV protected
- - Quad Core ARM CPU
  - Android 11.0 OS
  - 40GB built-in memory
  - Internal LiPo rechargeable batteries
- - Full UV protection lenses plus ANSI Z87.1 safety certification
- -
- -
- - Voice control - multilingual
  - 2-axis touchpad with multi-finger support
  - Companion app for Android & iOS devices
- - Integrated speaker
  - Dual noise-cancelling microphones
- - Up to 8-megapixel stills
  - Auto-focus
  - Streaming video
  - Integrated barcode scanner
- - 5.0 and 2.4GHz Wi-Fi and Bluetooth wireless
  - USB 2.0 Micro-B
- -
- - Operating temperature 0ºC to 35
  - Operating humidity 0-95% RH
  - Storage temperature -30 to 70ºC
  - Storage humidity 0-95% RH
- - English
  - Spanish
  - German
  - Mandarin-Simplified Script
  - Mandarin- Traditional Script
  - Cantonese- Traditional Script
  - Japanese
  - Korean
- - 3-degree of freedom head tracking
  - 3 axis gyro
  - 3 axis mag/integrated compass
VUZIX Shield
- - See through Waveguide optics
  - Displays: microLED monochrome green
  - High brightness, high output
- - 8 core CPU running Android 11
- - ANSI Z87.1 safety certification (Shield smart glasses and prescription lens inserts)
  -EN166/170 safety certification (Shield smart glasses, prescription lens inserts, and side shields)
- -
- Batteries in Each Temple
- - Voice control - supports multiple languages and accessible to 3rd party integrators via SDK
  - Capacitive touchpad on side of glasses that will support left/right/up/down swipes and one- or two-finger taps. The touchpad will be usable with gloves on.
- - Integrated stereo speakers
  - Digital noise-cancelling microphones
  - Speakers are used for music playback, notifications, instructions, and phone calls
  - Bluetooth audio functionality
- - Stereo 13-megapixel cameras with auto-focus
  - Up to 4k 30fps video
  - Integrated privacy LED
  - Advanced optical reader includes barcode scanner
- - USB 3.1 Gen2 on USB Type-C
  - Wi-Fi 802.11/b/g/n/ac 2.4/5GHz
  - Bluetooth 5.0 BR/EDR/LE
  - Companion application for Android and iOS devices to come
  - Support notifications with Android and iOS devices including text messages, email, and phone calls to come
- -
- -
- English
- -
VUZIX M400C
- - Display resolution: nHD color display
  - Display type: OLED
  - Aspect ratio: 16:9
  - Field of view (diagonal): 16.8°, equivalent to a 5 in. mobile device screen seen at 17 inches
  - Brightness: > 2000 nits
  - Contrast: > 10,000:1
  - 24-bit color with true black
  - Supports left or right eye use
- -
- - IP67 Rated protection against water and dush
  - Drop safe to 2 meters
- - Vuzix M-Series Rail Eyeglass frames without lens (standard)
  - Weighs less than 3 oz.
  - Eyeglass frames with lens
  - Safety glasses
  - Hard hat mount
  - Headband mount
  - Peltor headphone mount
- - 4 control buttons
  - Voice control compatible
  - 2 axis touchpad with multi-finger support
- Integrated speaker (up to 97db output)
  Triple noise-canceling microphones
- - Up to 12.8-megapixel stills
  - Improved auto-focus (PDAF)
  - Streaming Video Up to 4k,30fps - LED flash/scene illumination
- - USB 3.1 Gen 1 with DisplayPort Alternate Mode on USB Type-C
- -
- - Operating temp: -20°C - 50°C
  - Operating humidity 0-95% RH
  - Storage temp: -30°C to +70°C per MIL-STD-810H
  - Storage humidity 0-95% RH
- - Languages provided by connected device
- - 3-degree of freedom head tracking
  - 3 axis gyro
  - 3 axis accelerometer
  - 3 axis mag/integrated compass
