Enhanced for Enterprise

Even more powerful, the M300XL is the best performing model to date, enhancing efficiency and performance from logistics to manufacturing.

Feature-Packed M300XL Smart Glasses

Wearable Display for Mobile Entertainment and VR
Wearable Display for Mobile Entertainment and VR
$1,499.99 BUY NOW
Video for vuzix blade

ENHANCED FOR ENTERPRISE

With several hardware performance upgrades, Vuzix M300XL improves even more the hands-free digital experience. Allowing unique efficient and accurate access to information, data collection, and communication, the M300XL is a complete tool. Its new design and feedback systems bring more agility to the workplace, keeping all the amazing features from the M300. It also supports a vast series of accessories enabling operations on the plant floor, construction site or warehouse. Other than all the existing accessories M300XL is bringing even more items to attend all your team needs.

Industry Whitepapers for Vuzix M300 Series

Vuzix M300 Series have helped many manufacturers assess the most pressing industry pain points with complete, easy to use solutions using augmented reality to create more efficient, safe, and error-free work environments. Vuzix M300 solutions help solve complex tasks such as assembly, maintenance and repair, quality inspection, and training.

Please select a white paper to download.

M300XL for Manufacturing M300 Series for Manufacturing
M300XL for Field Service COMING SOON M300 Series for Field Service
M300XL for Warehousing COMING SOON M300 Series for Warehousing
M300XL for Work Instructions COMING SOON M300 Series for Work Instructions
$1,499.99 BUY NOW
Video for vuzix blade

NEW AND IMPROVED CAMERA, BATTERY AND CONNECTIVITY

Vuzix M300XL provides all the functionalities from the Vuzix M300 plus many hardware improvements. The new USB-Micro B port ensures stronger and more reliable connections at all times. The M300XL also includes a USB port for external Wi-Fi USB offering improved 2.4Ghz Wi-Fi. Longer lasting battery with built-in LEDs for battery level alerts. New 16-megapixel camera with improved auto-focus and image stabilization performance, up to 3 times faster than the original M300 camera.

Learn about our solutions

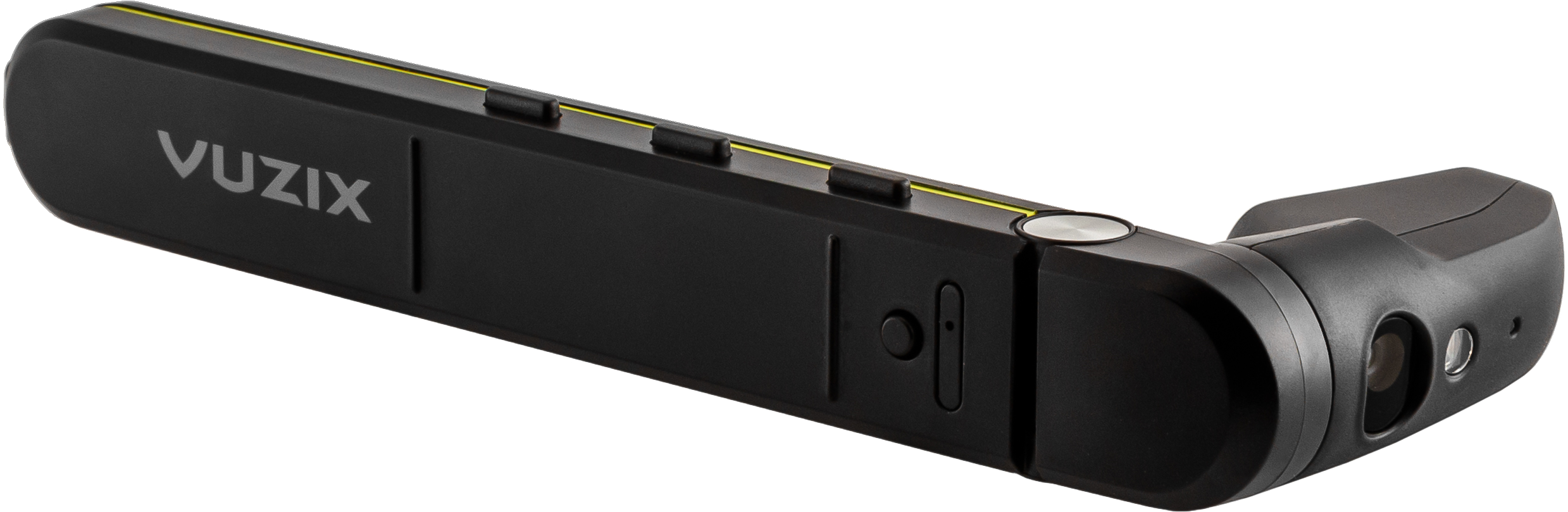

Technical Specifications

Optics

  • Display resolution: nHD color displays
  • Aspect ratio: 16:9
  • Field of View (diagonal): 16.7 degrees, equivalent to a 5 in. mobile device screen seen at 17 inches.
  • Brightness: >2000 nits
  • 24 bit color
  • Supports left or right eye use
  • Dual Core Intel Atom CPU
  • 2GB system RAM
  • Android 6 OS
  • 64GB internal flash memory

Universal Mounting Options Available

  • Eyeglass frames with or without lens
  • Safety glasses
  • Hard hat mount
  • Headband mount

Controls

  • 4 standard Android control buttons
  • Voice control – customizable and supports multiple languages
  • 2 Axis touch pad with gesture

Battery

  • 160mAh internal battery supports hot swapping of external batteries
  • 860mAh smart external battery
  • Supports USB batteries providing at least 1 Amp
  • 2 – 12 hours of operation based on external battery choice
  • MicroUSB 2.0 HS
  • Wi-Fi b/g/n/ac – Dual-B 2.4/5 GHz
  • BT 4.1/2.1+EDR

Integrated head Tracker

  • 3-degree of freedom head tracking
  • 3 axis gyro
  • 3 axis accelerometer
  • 3 axis mag/integrated compass

Audio

  • Ear speaker
  • Dual noise canceling microphones

Camera

  • Up to 10 megapixel stills
  • Up to 1080p video
  • Fast Auto-Focus (~1 second response time)
  • Optical Image Stabilization
  • Flash/scene illumination

Sensor Systems

  • Proximity inward facing
  • Proximity/ALS outward facing
$1,499.99 BUY NOW

Built for Enterprise

The Vuzix M300XL is the next generation of Smart Glasses for hands-free mobile computing

Vuzix M300XL Smart Glasses delivers a "hands free" digital world, providing unprecedented access to information, data collection and more. Improve existing workflows and open new opportunities in industrial, medical, retail, supply chain, remote help desk, and other aspects of your business.

The Vuzix M300XL Smart Glasses is an ergonomically designed and rugged Android-based wearable computer. It's enhanced with a monocular display and onboard processor, expandable memory, recording features and wireless connectivity capabilities. And it's been purpose-designed for enterprise, professional, and prosumer users. Pre-installed apps can be used to track timed events, manage your calendar, and link to your phone and more. The HD camera records, stores, plays back still picture and video, and can be used as a barcode scanner. The M300XL is compatible with thousands of existing Android apps and Vuzix' easy access to developer resources enables the creation of custom apps to suit virtually any need.
